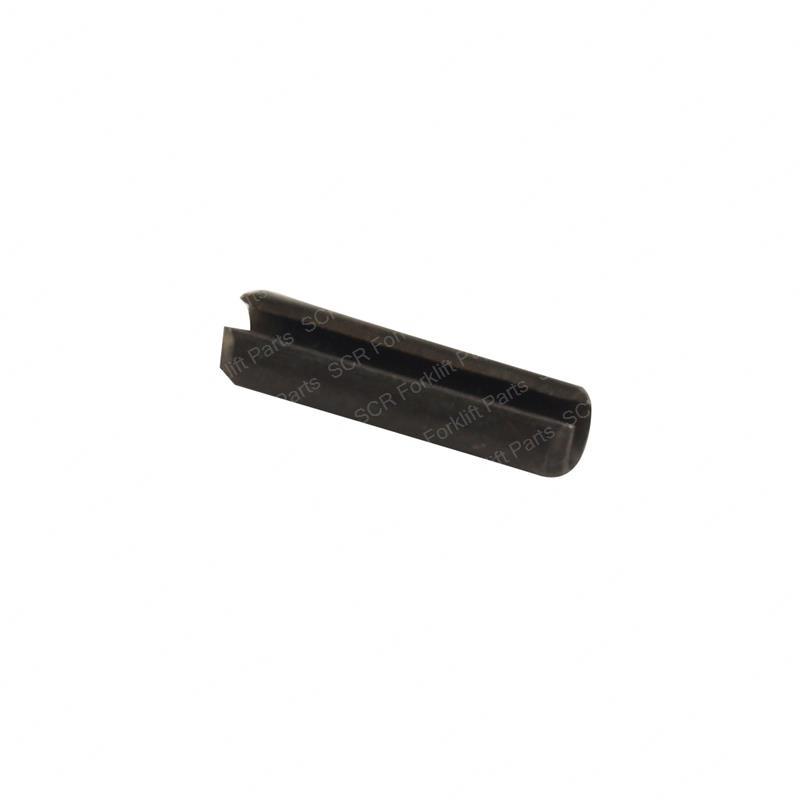

CLAMPING PIN 20X5 (AC04025-00520)

Clamping Pin

This 20mm by 5mm clamping pin is a heavier roll pin used in shaft and linkage retention applications on forklift assemblies where higher shear capacity is required. Service techs replace clamping pins after every disassembly because the spring profile distorts during driving out. Sized inventory by length and diameter speeds rebuild work. Sold as an aftermarket replacement, contact us to verify outer diameter, length, and wall thickness class before ordering, since clamping pins of identical nominal size vary in spring rate and material grade, and substituting between standard and heavy-wall versions changes shear capacity significantly under operating retention load during service cycles on the assembly.

Aftermarket replacement part, cross-references original part number AC04025-00520.

Need help confirming fit? Call (562) 693-7748 with your serial number.

Part number variants: AC04025-00520, ac04025-00520, AC0402500520, ac0402500520
