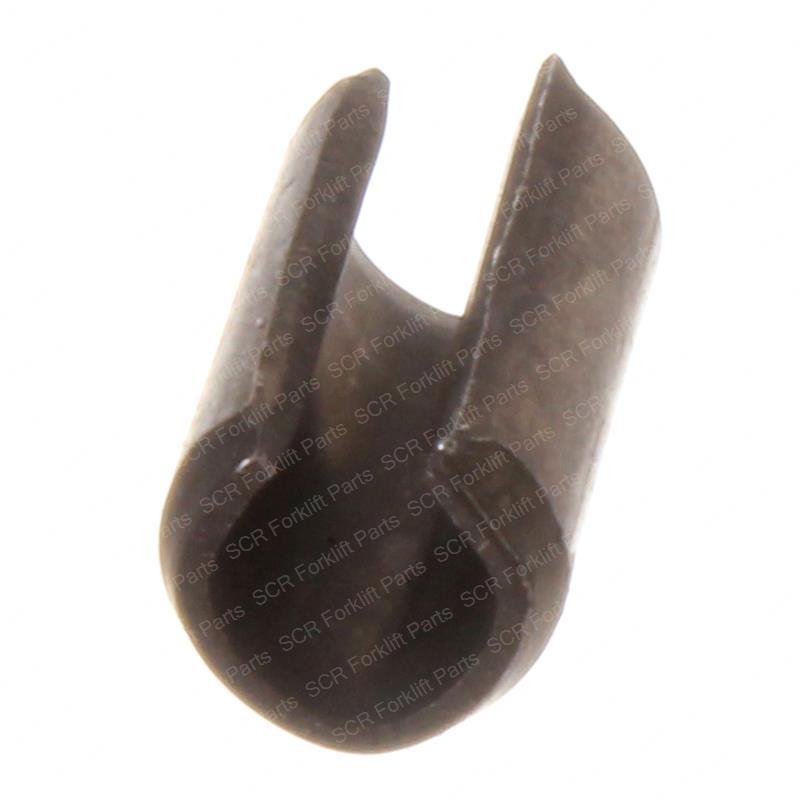

CLAMPING PIN 12X5 (AC04025-00512)

Clamping Pin

This 12mm by 5mm clamping pin is a heavier-diameter roll pin used in higher-shear retention applications on forklift assemblies. The larger diameter provides greater shear capacity than smaller pins, suitable for joints carrying significant operating loads. Service techs replace clamping pins after disassembly because the spring profile distorts during removal. Sold as an aftermarket replacement, contact us to verify outer diameter, length, and wall thickness class before ordering, since clamping pins of identical nominal size vary in spring rate and material grade, and substituting between thin-wall and heavy-wall versions changes the shear capacity significantly under operating retention load during normal service cycles.

Aftermarket replacement part, cross-references original part number AC04025-00512.

Need help confirming fit? Call (562) 693-7748 with your serial number.

Part number variants: AC04025-00512, ac04025-00512, AC0402500512, ac0402500512
