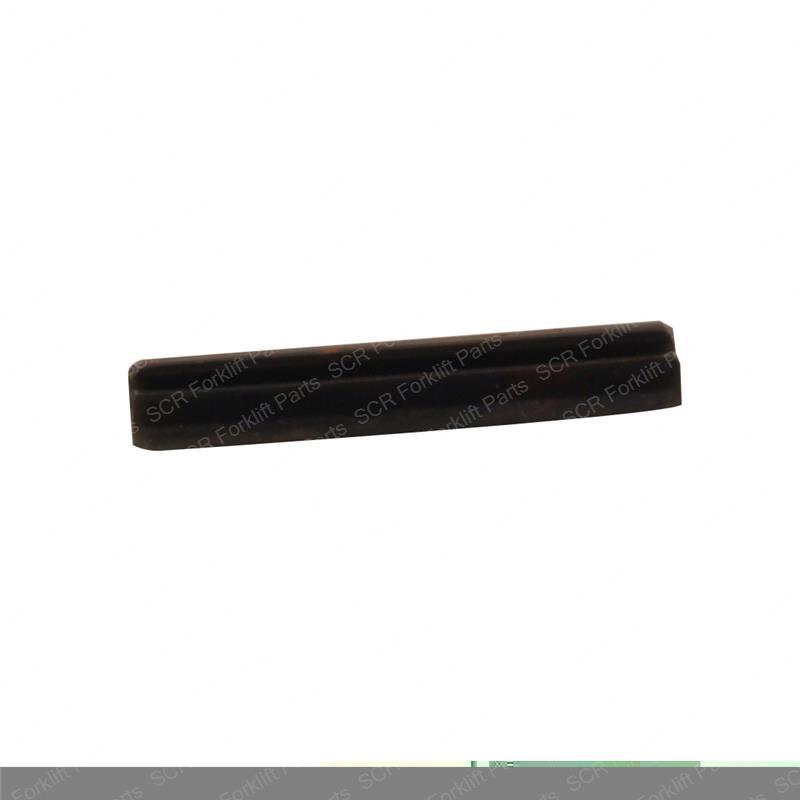

CLAMPING PIN24X4 (AC04025-00424)

Clamping Pin

This 24mm by 4mm clamping pin is a roll pin used for shaft and linkage retention on forklift assemblies, with the longer engagement length supporting joints where additional pin contact area is required. Service techs replace clamping pins when shear damage or removal damage prevents reuse. Sized inventory by length and diameter prevents reassembly delays. Sold as an aftermarket replacement, contact us to verify outer diameter, length, and spring tension class before ordering, since clamping pins of identical nominal size vary in wall thickness and material grade, and substituting between standards changes the shear capacity significantly under operating retention load on the assembly during normal service cycles.

Aftermarket replacement part, cross-references original part number AC04025-00424.

Need help confirming fit? Call (562) 693-7748 with your serial number.

Part number variants: AC04025-00424, ac04025-00424, AC0402500424, ac0402500424
