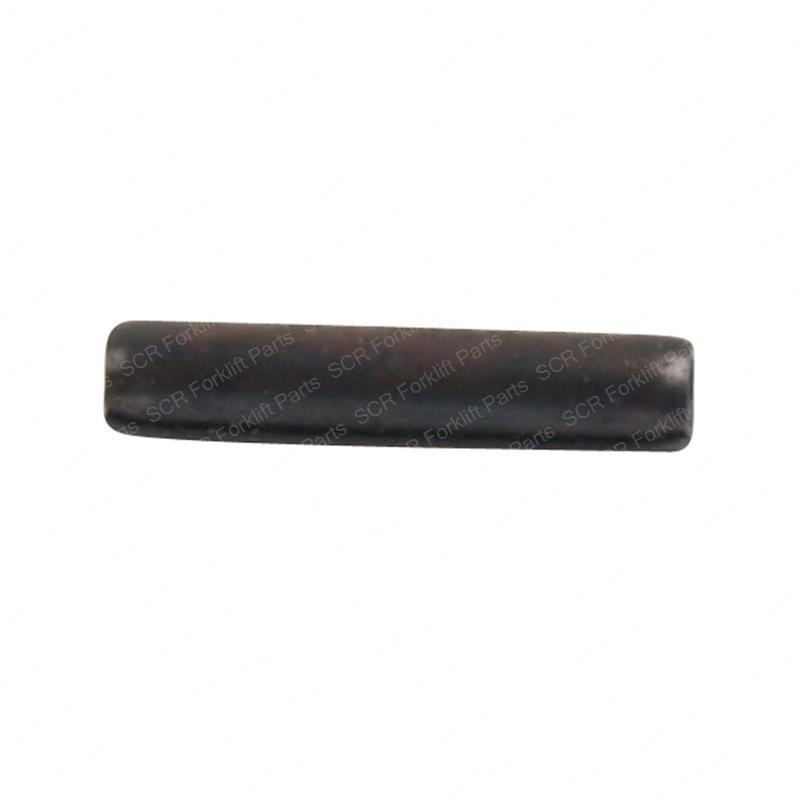

CLAMPING PIN 16X3 (AC04025-00316)

Clamping Pin

This 16mm by 3mm clamping pin is a roll pin used to retain shafts, linkages, or pivot connections on forklift assemblies. Mechanics replace clamping pins when shear failure, distortion, or removal damage prevents reliable reuse during teardown. Sized assortments by length and diameter speed reassembly during rebuild work without trips to the parts counter. Sold as an aftermarket replacement, contact us to verify outer diameter, length, and spring tension class before ordering, since clamping pins of identical nominal size vary in wall thickness and spring rate, and substituting a thinner-wall version into a high-shear retention joint leads to immediate failure under operating cycling load.

Aftermarket replacement part, cross-references original part number AC04025-00316.

Need help confirming fit? Call (562) 693-7748 with your serial number.

Part number variants: AC04025-00316, ac04025-00316, AC0402500316, ac0402500316
