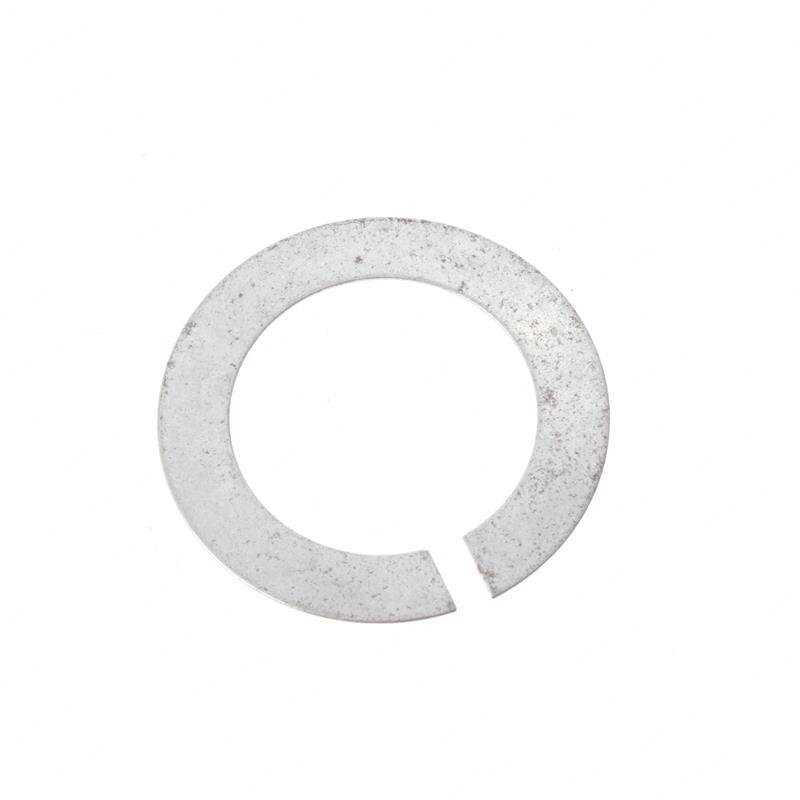

SHIM TILT CYLINDER (Raymond RA223-010-626)

A damaged tilt cylinder shim can cause excessive play in the cylinder assembly, leading to uneven wear and reduced positioning accuracy. This aftermarket replacement part references Raymond catalog number RA223-010-626. The shim functions as a thin spacer that adjusts clearance between moving components within the cylinder. Its primary mechanical role is to maintain proper axial alignment under load. Without correct shim thickness, the cylinder may develop binding or leakage over time. The item ships at approximately 0.006 pounds. Verify the serial number or application, then call (562) 693-7748.

Part number variants: RA223-010-626, ra223-010-626, RA223010626, ra223010626
