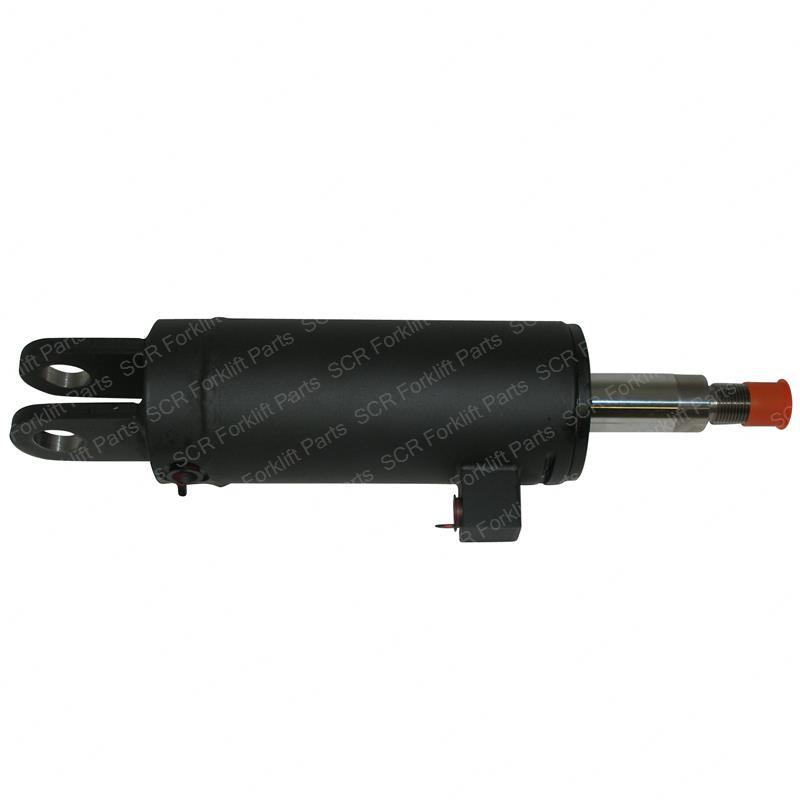

CYLINDER ASSEMBLY - TILT (Raymond RA223-003-100-001)
Code: RA223-003-100-001
Check Price & Availability
Product Details
- Aftermarket Replacement For
- Raymond
- Warranty
- 6 months
Will This Fit my Equipment?Click here
Fast Shipping
6 Mo. Warranty
7-Day Returns
A damaged tilt cylinder assembly can cause uncontrolled mast movement, leading to load instability. This aftermarket replacement part is cross-referenced to Raymond part number RA223-003-100-001. The cylinder assembly converts fluid pressure into linear motion to control tilt angle. A common failure consequence is leakage past seals, resulting in slow or erratic tilt response. During operation, a worn cylinder may allow the mast to drift from its set position. The item ships at approximately 17.76 pounds. Verify the serial number or application, then call (562) 693-7748.
Part number variants: RA223-003-100-001, ra223-003-100-001, RA223003100001, ra223003100001
| SKU | RA223-003-100-001 |
|---|---|
| Aftermarket Replacement For | Raymond |
| Warranty | 6 months |
| Condition | New Aftermarket |
| Backorderable | No |
| Categories | ra, raymond, tvh, TVH_BUCKET:RA:ra2, TVH_MAKE:RA |
Shipping
- Most orders ship within 1-2 business days from our Whittier, CA warehouse.
- Standard shipping via UPS or USPS. Expedited options available at checkout.
- Free shipping on select orders. Contact us for shipping estimates.
- Same-day local pickup available. Call (562) 693-7748 to arrange.
Returns
- 7-day return policy on all unused parts in original packaging.
- Contact us at (562) 693-7748 or submit a parts inquiry to initiate a return.
- Defective parts are covered under our 6-month warranty.
Warranty
- All parts include a 6-month warranty against manufacturer defects.
- Warranty does not cover wear-and-tear, misuse, or improper installation.
