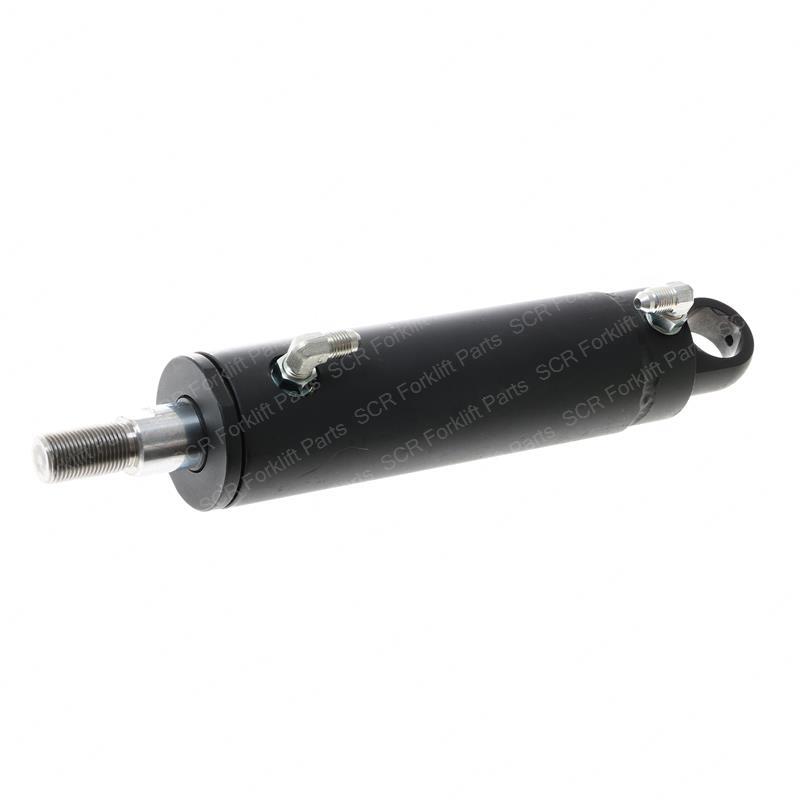

CYLINDER ASSY (Raymond RA1152880)

A worn cylinder assembly can cause erratic movement or loss of holding force in the equipment it serves. This aftermarket replacement part references Raymond catalog number RA1152880. The cylinder assembly converts fluid pressure into linear mechanical motion to extend or retract a connected component. A common failure consequence is internal leakage past the piston seals, which reduces output force and may allow the load to drift. During operation, the cylinder body must withstand repeated pressure cycles without cracking or deforming. The assembly includes the barrel, piston, rod, and end caps as a single unit. Verify the serial number or application, then call (562) 693-7748.

Part number variants: RA1152880, ra1152880
