DECAL LIFT DIAGRAM (1200/1350) (JLG JL1705096)
Code: JL1705096
Check Price & Availability
Product Details
- Aftermarket Replacement For
- JLG
- Warranty
- 6 months
Will This Fit my Equipment?Click here
Fast Shipping
6 Mo. Warranty
7-Day Returns

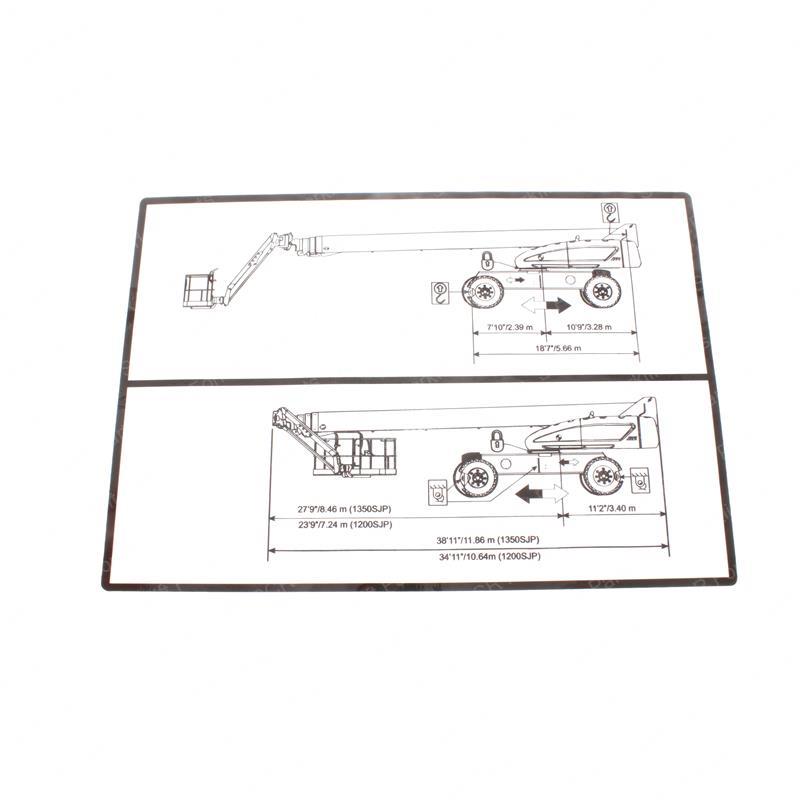

A damaged lift diagram decal can lead to operator confusion during load handling. This aftermarket replacement part references JLG catalog number JL1705096. The decal displays a visual lift diagram for reference. Its plain mechanical function is to provide a clear, durable graphic on the equipment. Without a legible diagram, an operator may misjudge load positioning. The item ships at approximately 0.06 pounds. Verify the serial number or application, then call (562) 693-7748.
Part number variants: JL1705096, jl1705096
| SKU | JL1705096 |
|---|---|
| Aftermarket Replacement For | JLG |
| Warranty | 6 months |
| Condition | New Aftermarket |
| Backorderable | No |
| Categories | jl, jlg, tvh, TVH_BUCKET:JL:jl1, TVH_MAKE:JL |
