DECAL WIRING DIAGRAM (JLG JL1704246)
Code: JL1704246
Check Price & Availability
Product Details
- Aftermarket Replacement For
- JLG
- Warranty
- 6 months
Will This Fit my Equipment?Click here
Fast Shipping
6 Mo. Warranty
7-Day Returns

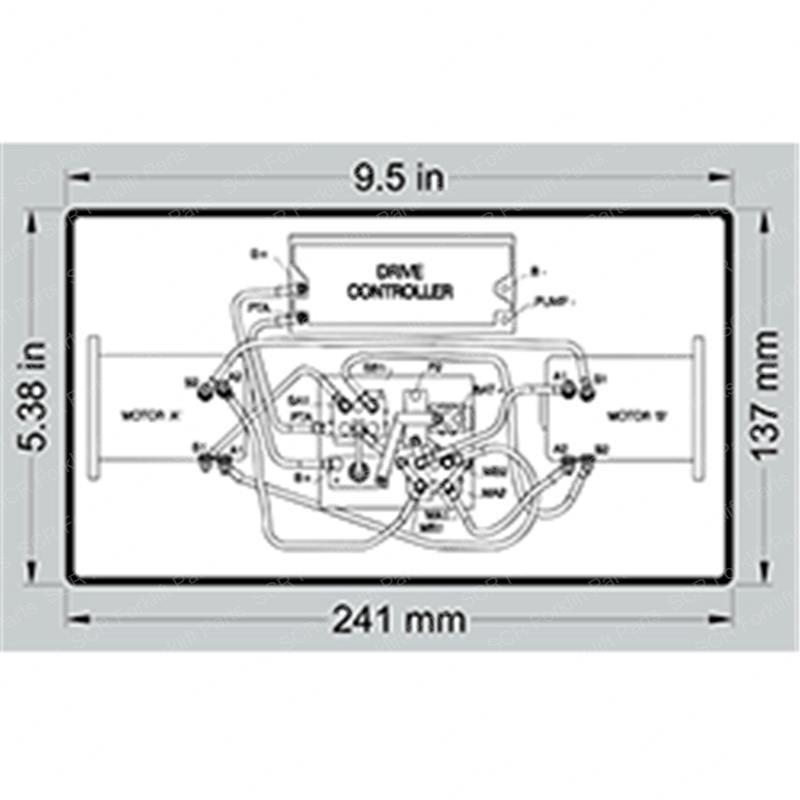

JL1704246: A damaged decal can lead to incorrect wiring during service, risking short circuits or component damage. The JLG catalog reference for this aftermarket replacement part is JL1704246. This decal displays the wiring diagram for the associated system. Its plain mechanical function is to provide a permanent visual reference for electrical connections. Without a legible diagram, technicians may misroute wires, causing operational failures. Keeping a decal in readable condition helps avoid costly troubleshooting delays. Verify the serial number or application, then call (562) 693-7748. This item ships at approximately 0.03 pounds.
Part number variants: JL1704246, jl1704246
| SKU | JL1704246 |
|---|---|
| Aftermarket Replacement For | JLG |
| Warranty | 6 months |
| Condition | New Aftermarket |
| Backorderable | No |
| Categories | jl, jlg, tvh, TVH_BUCKET:JL:jl1, TVH_MAKE:JL |
