DIAPHRAGM ASSEMBLY (AC16093-A3510)Sale
$92.67
58% OFF$38.58

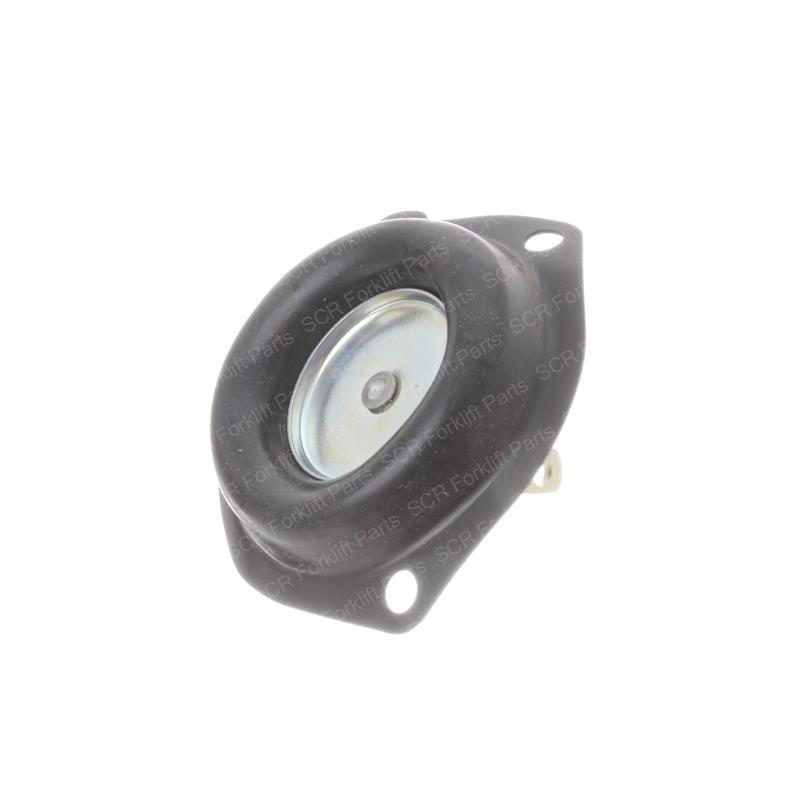

DIAPHRAGM ASSEMBLY (AC16093-A3510)

Code: AC16093-A3510

Check Price & Availability

Product Details

Warranty
6 months
Will This Fit my Equipment?Click here
Reviews
Fast Shipping
6 Mo. Warranty
7-Day Returns
$92.67
58% OFF
$38.58
Ships from Whittier, CA
Call: (562) 693-7748Mon-Fri: 7:30 AM - 4 PM

Diaphragm

The AC16093-A3510 is a diaphragm assembly used inside the carburetor accelerator pump or enrichment circuit on the forklift carburetor. The flexible membrane converts pressure changes into fuel delivery, supporting smooth acceleration and cold-start enrichment. A pliable, intact diaphragm is essential, since cracks or stiffening cause hesitation off-idle and difficulty starting, especially as the carburetor ages with exposure to fuel. Supplied as an aftermarket replacement part that meets or exceeds the form, fit, and function of the original component. Confirm the part number matches the carburetor or assembly on your forklift before installing, and replace any related gaskets, seals, or hardware disturbed during service to maintain a leak-free seal.

Aftermarket replacement part, cross-references original part number AC16093-A3510.

Need help confirming fit? Call (562) 693-7748 with your serial number.

Part number variants: AC16093-A3510, ac16093-a3510, AC16093A3510, ac16093a3510

⚠ Warning: Some equipment has serial-number breaks that may not be reflected in the catalog. Contact us for clarification before ordering if uncertain.

SCR Forklift Parts ships from Whittier, CA with next-day delivery available across the US when needed.
